Replace the old Revenue Grid widgets with the new ones in Salesforce¶
We’ve upgraded Revenue Grid widgets to be faster and more responsive so you can get your sales insights quicker than ever. While the old widgets still work, they are scheduled for removal soon.
If you’re still using the old widgets, it’s time to switch them out. This article explains how to replace them with the new ones in your Salesforce layout.
Note
- Only users with permission to edit page layouts in Salesforce can replace Revenue Grid widgets. If you don’t have these permissions, contact your Salesforce administrator to complete the replacement.
- If you’re also using the old Revenue Grid app, we recommend moving to the new version. For instructions, see Replace the old Revenue Grid app in Salesforce with the new one.
Steps to replace your Revenue Grid widgets¶
Here’s how to swap out each old widget on your Salesforce page layout:
- Open the page where the old widget currently is.
-

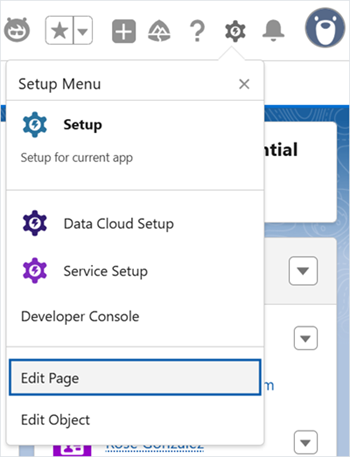

Click the Gear icon in the top-right corner and select Edit Page.
-

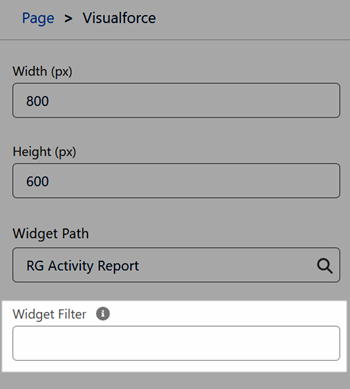

Click the widget you want to replace. In the properties panel, check if there’s a Widget Filter—if there is, copy it somewhere so you can reuse it later.
-

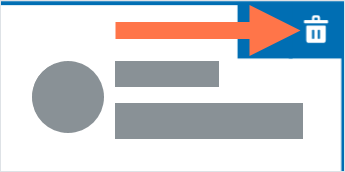

Click the Delete icon on the widget or press Delete on your keyboard.
-

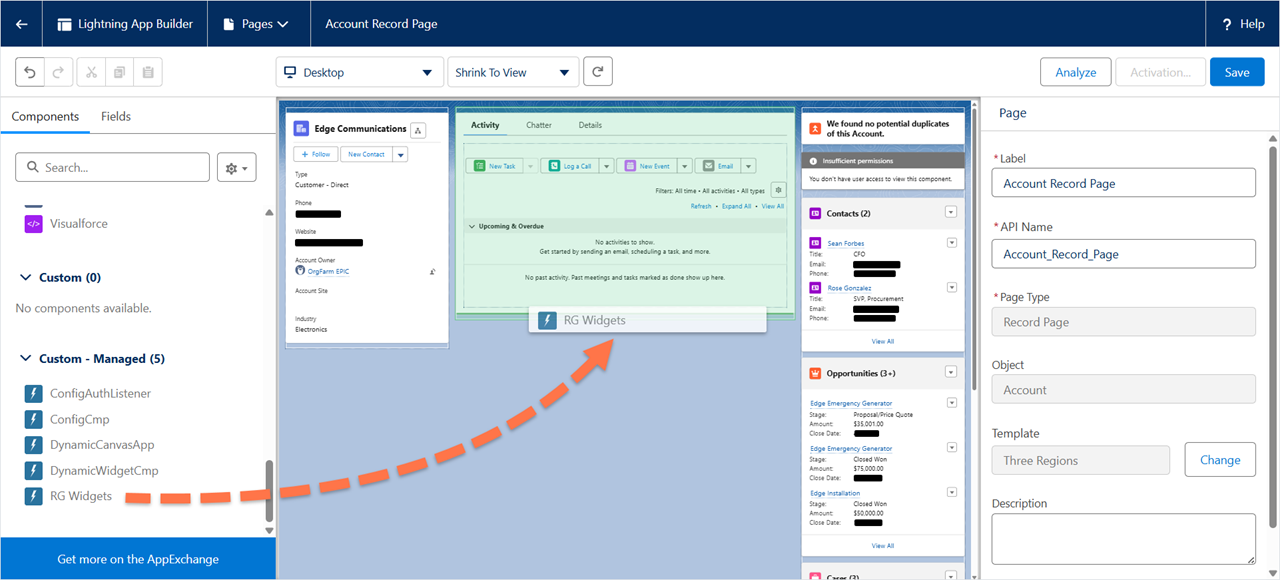

In the components panel on the left, scroll to Custom - Managed and drag the RG Widget component onto the page.
-

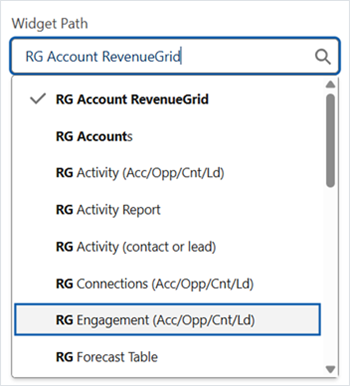

In the properties panel, open the Widget Path menu and select the new version of the widget you need.
Note
Some widget names and types have changed. Use the mapping table below to find the correct replacement for each old widget.
-
(Optional) If you copied a filter from the old widget, paste it into the Widget Filter field.
-

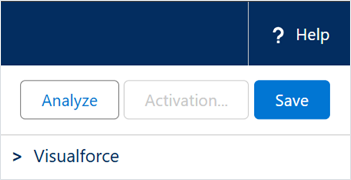

Click Save to apply your changes.
-

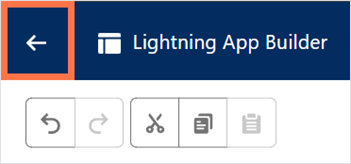

Click the Back arrow to return to the page.
Old-to-new widgets mapping¶
Note
Widgets such as RG Signals (Acc/Opp/Cnt/Ld) or RG Activity (contact or lead) combine several similar widgets into a single, dynamic widget. The data displayed automatically adjusts based on the object page where the widget is added. For example, if you add RG Activity to a Contact page, it displays contact-related data; if you add it to a Lead page, it shows lead-related insights.
| Old widget name | New widget name |
|---|---|
| RevenueGrid | Revenue Grid |
| RG Signals | RG Signals |
| RG Pipeline Flow (deprecated) | deprecated |
| RG Contact Overview | RG Overview (contact or lead) |
| RG Contact Sequences | RG Sequences (contact or lead) |
| Pipeline Evolution Report | RG Pipeline Evolution |
| Forecasting Table | RG Forecast Table |
| RG Log a Call to Lead | RG Log a Сall (contact or lead) |
| RG Log a Call to Contact | RG Log a Сall (contact or lead) |
| RG Account Signals | RG Signals (Acc/Opp/Cnt/Ld) |
| RG Opportunity Activity | RG Activity (Acc/Opp/Cnt/Ld) |
| RG Send an Email to Lead | RG Mail to (contact or lead) |
| Account Activity | RG Activity (Acc/Opp/Cnt/Ld) |
| RG Account Connections | RG Connections (Acc/Opp/Cnt/Ld) |
| Contact Activity Trends | RG Activity (Acc/Opp/Cnt/Ld) |
| RG Account Engagement | RG Engagement (Acc/Opp/Cnt/Ld) |
| RG Contact’s Engagement | RG Engagement (Acc/Opp/Cnt/Ld) |
| RG Lead’s Signals | RG Signals (Acc/Opp/Cnt/Ld) |
| RG Opportunity Signals | RG Signals (Acc/Opp/Cnt/Ld) |
| RG Opportunity RevenueGrid | RG Opportunity RevenueGrid |
| RG Lead Sequences | RG Sequences (contact or lead) |
| RG Signals Report | RG Signal Report |
| RG Contact’s Connections | RG Connections (Acc/Opp/Cnt/Ld) |
| RG Team Performance | RG Team Performance |
| RG Opportunity Connections | RG Connections (Acc/Opp/Cnt/Ld) |
| RG Lead Activity History | RG Activity (contact or lead) |
| RG Lead Overview | RG Overview (contact or lead) |
| RG SMS to Contact | RG SMS (contact or lead) |
| RG Contact’s Signals | RG Signals (Acc/Opp/Cnt/Ld) |
| RG Waterfall | RG Waterfall |
| RG Lead’s Connections | RG Connections (Acc/Opp/Cnt/Ld) |
| RG Accounts | RG Accounts |
| RG Pipeline | RG Pipeline |
| RG Forecast Tracker (deprecated) | deprecated |
| Lead Activity Trends | RG Activity (Acc/Opp/Cnt/Ld) |
| RG Send Email Opportunity | RG Send Email Opportunity |
| RG Send an Email to Contact | RG Mail to (contact or lead) |
| RG Contact Activity History | RG Activity (contact or lead) |
| RG SMS to Lead | RG SMS (contact or lead) |
| Calendars | RG Calendars |
| RG Opportunity Engagement | RG Engagement (Acc/Opp/Cnt/Ld) |
| UserUI | none |
| Revenue Inbox User Salesforce Config | none |
| Revenue Inbox User Mailbox Config | none |
| Revenue Inbox User Additional Config | none |
| RI Admin | none |
| Accounts | RG Accounts |
| Account Connnections(Deprecated) | none |
| RG Activity Report | RG Activity Report |
Next steps¶
Once you’re done, double-check the new widgets to ensure everything’s working as expected. If you’re not sure which new widget to use or need help, contact your Revenue Grid admin or our support team.
And remember—make the switch before the old widgets are retired to keep everything running smoothly.
